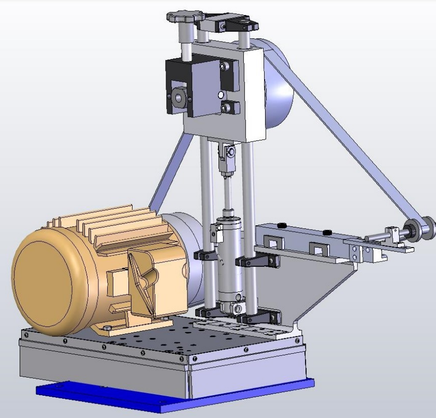

Belt Grinding Head 2 HP
Model: BGH-2HP-LC

Belt grinding and polishing head with 2HP AC motor, linear compliance slide, and pneumatic force control built with precision for automated or manual use. Optionally the head can be purchased without compliance slide. The belt head is on common mounting plate. Optional controls include discrete I/O, Ethernet I/P,  Profibus, or Devicenet.

• 2HP AC motor driven
• Belt speeds with 3450RPM motor up to 5400 SFPM (surface feet per minute)
• Belts up to 3" (76mm)wide ad 72" or 90" (1830 or 2280 mm) long depending on front arm
• Manual belt tracking
• Linear compliance slide with up to 0.75" travel (19mm) and pneumatic force up to 30 lbs (13.5 kg)
• Optional fully plumbed and wired ready for use
• Available controls are: discrete I/O, Ethernet I/P, Profibus, Devicenet
• Front arms with various contact wheels
• Sensors for linear compliance forward/reverse positions and broken/missing belt

BELT HEAD, 5HP
Model: BGH-5HP-LC-LD

Belt grinding and polishing head with 5HP AC motor, linear compliance slide, and pneumatic force control built with precision for automated or manual use. Optionally the head can be purchased without compliance slide. The belt head is mounted on pedestal. Optional controls include discrete I/O, Ethernet I/P, Profibus, or Devicenet.

• 5HP AC motor driven
• Belt speeds with 3450RPM motor up to 5400 SFPM (surface feet per minute)
• Standard abrasive belts up to 4" (102mm)wide and 132" (3352 mm) long depending on front arm
• Manual belt tracking
• Linear compliance slide with up to 0.75" travel (19mm) and pneumatic force up to 90 lbs (41 kg)
• Optional fully plumbed and wired ready for use
• Available controls are: discrete I/O, Ethernet I/P, Profibus, Devicenet
• Front arms with various contact wheel configurations
• Sensors for linear compliance forward and reverse positions and broken/missing belt
• Optional remote motorized belt tracking

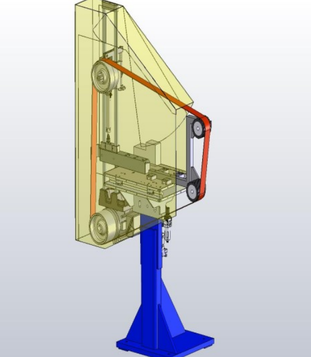

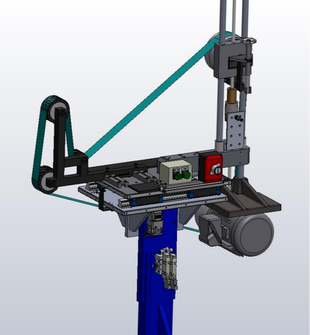

BELT HEAD, 5HP
​Model: BGH-5HP-LC-HD

Belt head for heavy grinding with 5HP AC motor, linear compliance slide, and pneumatic force control built with precision for automated or manual use. Optionally the head can be purchased without compliance slide. The belt head is on common mounting plate. Optional controls include discrete I/O, Ethernet I/P, Profibus, or Devicenet.

• 5HP AC motor driven
• Belt speeds with 3450RPM motor up to 5400 SFPM (surface feet per minute)
• Standard abrasive belts up to 4" (102mm)wide and 132" (3352 mm) long depending on front arm
• Manual belt tracking
• Linear compliance slide with up to 0.75" travel (19mm) and pneumatic force up to 90 lbs (41 kg)
• Optional fully plumbed and wired ready for use
• Available controls are: discrete I/O, Ethernet I/P, Profibus, Devicenet
• Front arms with various contact wheel configurations
• Sensors for linear compliance forward and reverse positions and broken/missing belt
• Optional remote motorized belt tracking

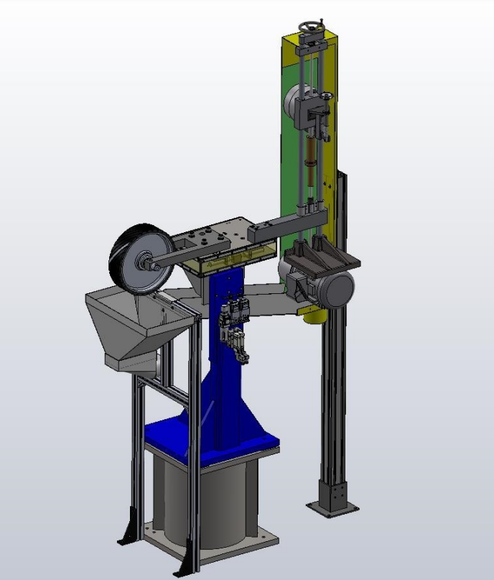

BELT HEAD, 10HP
​Model: BGH-10HP-LC

Belt head for heavy grinding with 10HP AC motor, linear compliance slide, and pneumatic force control built with precision for automated or manual use. Optionally the head can be purchased without compliance slide. The belt head is mounted on pedestal. Optional controls include discrete I/O, Ethernet I/P, Profibus, or Devicenet.

• 10HP AC motor driven
• Belt speeds with 3450RPM motor up to 5400 SFPM (surface feet per minute)
• Standard abrasive belts up to 6" (152mm)wide and 132" (3352 mm) long depending on front arm
• Manual belt tracking
• Linear compliance slide with up to 0.75" travel (19mm) and pneumatic force up to 90 lbs (41 kg)
• Optional fully plumbed and wired ready for use
• Available controls are: discrete I/O, Ethernet I/P, Profibus, Devicenet
• Front arms with various contact wheel configurations
• Sensors for linear compliance forward and reverse positions and broken/missing belt
• Optional remote motorized belt tracking

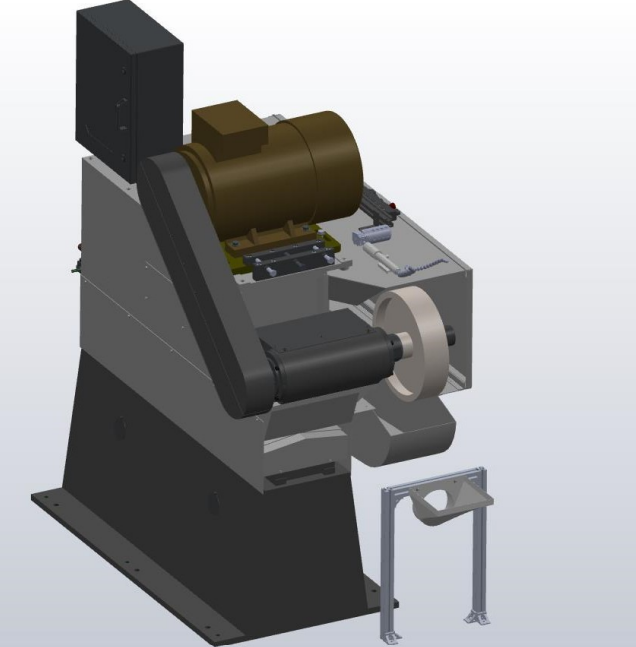

BELT HEAD, 40HP
​Model: BGH-40HP-LC

Belt head for heavy and rapid grinding with 40HP AC motor, linear compliance slide, and pneumatic force control built with precision for automated or manual use. Optionally the head can be purchased without compliance slide. The belt head is on heavy duty steel base. Optional controls include discrete I/O, Ethernet I/P, Profibus, or Devicenet.

• 40HP AC motor driving fron wheel
• Belt speeds with 3450RPM motor and 18" diameter wheel up to 16000 SFPM (surface feet per minute)
• Standard abrasive belts up to 6" (152mm)wide and 132" (3352 mm) long
• Manual belt tracking
• Linear compliance slide with up to 1" travel (25mm) and pneumatic force up to 350 lbs (160 kg)
• Optional fully plumbed and wired ready for use
• Available controls are: discrete I/O, Ethernet I/P, Profibus, Devicenet
• Various front contact wheels
• Sensors for linear compliance forward and reverse positions and broken/missing belt
• Optional remote motorized belt tracking

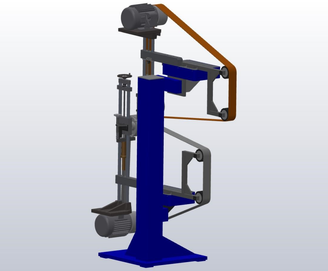

BELT HEADS, 5HP, OVER/UNDER
Model: BGHX2-5HP-LC

Two 5HP belt heads (BGH-5HP-LC-HD) mounted one over the other on pedestal. Each belt head is for heavy grinding or polishing with 5HP AC motor, linear compliance slide, and pneumatic force control built with precision for automated use. Optionally the head can be purchased without compliance slide. The belt heads are on common mounting pedestal. Optional controls include discrete I/O, Ethernet I/P, Profibus, or Devicenet.

• Two belt heads in over/under mounting
• 5HP AC motor driven
• Belt speeds with 3450RPM motor up to 5400 SFPM (surface feet per minute)
• Standard abrasive belts up to 4" (102mm)wide and 132" (3352 mm) long depending on front arm
• Manual belt tracking
• Linear compliance slide with up to 0.75" travel (19mm) and pneumatic force up to 90 lbs (41 kg)
• Optional fully plumbed and wired ready for use
• Available controls are: discrete I/O, Ethernet I/P, Profibus, Devicenet
• Front arms with various contact wheel configurations
• Sensors for linear compliance forward and reverse positions and broken/missing belt
• Optional remote motorized belt tracking
