​ROTARY POSITIONER WITH PNEUMATIC CHUCK
MODEL: ROT-CR-12-15000

Rotary table assembly with pedestal, 3-jaw pneumatic chuck, and wiring/plumbing ready to use. The table can rotate continuously at 12 RPM or stop as programmed when 7th axis of the robot is used as drive motor. Applications include rotating and positioning of IBRs, compressor disks, hubs, housings, gears, etc. Interface for Yaskawa or ABB servo motor are standard. Other interfaces can be designed and supplied.

• Continuous rotation or positioning with servo motor drive
• Payload: 500 lbs (230 kg)
• Table speed with 2000 RPM servo motor drive: 12 RPM
• Optional faster speeds are available
• Repeatability: +/-10 arcsec
• Adapters for Yaskawa ad ABB servo motors
• 3-jaw peumatic chuck mounted on top of rotary table
• Total Rated Grip Force F @ 100 psi [7 bar]: 13345 N [3000 lbs]
• Total Stroke: 34.9 mm [1.38 in]

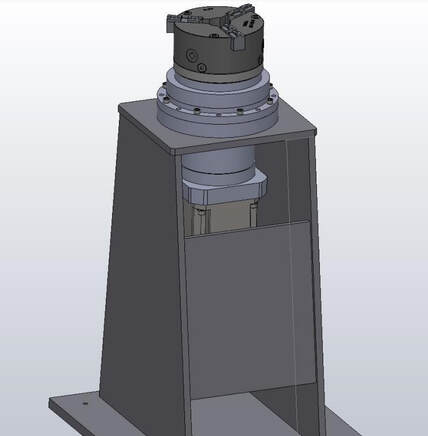

ROTARY POSITIONER WITH MANUAL CHUCK
MODEL: ROT-CR-12-17000

Rotary table assembly with pedestal, 3-jaw Yuasa-style manual chuck, ready to use. The table can rotate continuously at 12 RPM or stop as programmed when 7th axis of the robot is used as drive motor. Applications include rotating and positioning of IBRs, compressor disks, hubs, housings, gears, etc. Interface for Yaskawa or ABB servo motor are standard. Other interfaces can be designed and supplied.

• Continuous rotation or positioning with servo motor drive
• Payload: 500 lbs (230 kg)
• Table speed with 2000 RPM servo motor drive: 12 RPM
• Optional faster speeds are available
• Repeatability: +/-10 arcsec
• Adapters for Yaskawa ad ABB servo motors
• 3-jaw Yuasa manual Accu-Chuck with center adjustment mounted on top of rotary table

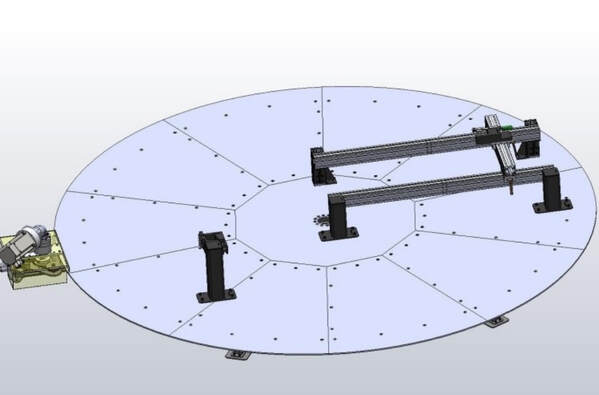

LARGE LOW PROFILE TURNTABLE
MODEL: ROT-CR-16285

Large floor level chain drive rotary table for large heavy parts. Continuous rotation or positioning with servo motor drive system. Clamping brakes provide additional holding force when table top stopped.

• Payload: 5000 lbs (2280 kg) evenly distributed from center
• Table top speed with 3000 RPM motor: 3.7 RPM
• Table height: 3 inches (76 mm)
• Table top diameter: 141 inches (3.58 meters)

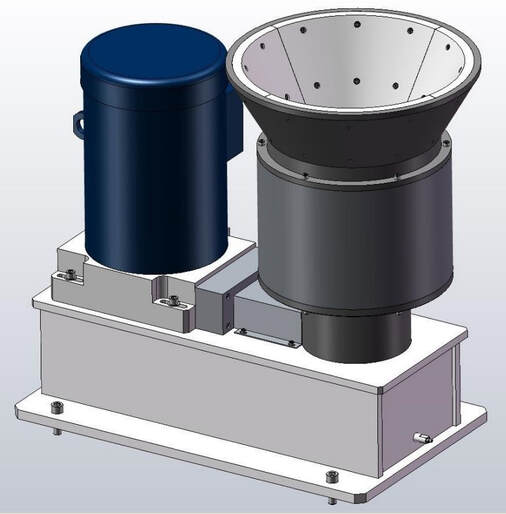

HIGH SPEED PART SPINNER
MODEL: ROT-HS-11257
​

This is high speed rotary table designed for spinning parts during finishing process. Applications range from buffing, polishing, or sanding of round pieces like kettles, buckets, pots and pans, housings, etc. where spinning part while articulating abrasives against its surfaces yields desired surface finish.

• Payload: 300 lbs (135 kg)
• Table top speed with 3500 RPM motor: 2190 RPM
• Table dimensions: 25.5"Lx15"Wx21"H (650x380x535 mm)
• Table top diameter: 12 inches (305 mm)
• Common mounting base included

LIGHTER PAYLOAD INDEXER
​MODEL: INDX-180D-19305

Two position CAM style indexer (180 degree) with pedestal and top plate. Driven by electric motor with brake.

• Allowable part/fixture load force: 5000 N (1125 lbs)
• Positioning accuracy: +/-30 arcsec
• Top fixture frame dimensions: 63"W x 18"D x 29"H (1600x460x737 mm)
• Height with pedestal: 47" (1194 mm)
• Sensors (PNP): In position, side A, side B

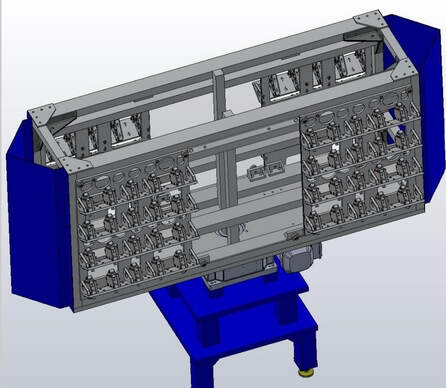

HEAVY PAYLOAD INDEXER
​MODEL: INDX-180D-12262

Two position CAM style indexer (180 degree) with pedestal and vertical fixture frame. Driven by electric motor with brake. Fixture frame designed for quick mounting of part load plates/fixtures.

• Allowable part/fixture load force: 5000 N (1125 lbs)
• Positioning accuracy: +/-30 arcsec
• Top fixture frame dimensions: 63"W x 18"D x 29"H (1600x460x737 mm)
• Height with pedestal: 47" (1194 mm)
• Sensors (PNP): In position, side A, side B

INDEXER W/ UTILITIES FEEDTHROUGH
​Model: INDX-120D-17291

Three position CAM style indexer (120 degree) with pedestal welded frame and top plate. Driven by electric motor with brake. Top plate designed for quick mounting of part load plates/fixtures. Utilities like I/O network, air, and power fed to the top plate allowing various controls to be mounted on indexer and continuous rotation. Casters and leveling feet are included for easy repositioning.

• Allowable part/fixture load force: 5000 N (1125 lbs)
• Positioning accuracy: +/-30 arcsec
• Top plate diameter: 60" (1524 mm)
• Height with pedestal and casters: 36" (915 mm)
• Sensors (PNP): In position, sides A,B,C
• Utilities fed to top plate: I/O network like Ethernet I/P, Profibus, Devicenet, compressed air, power (24VDC)

Indexer with Utilities Feed-through
​Model: INDX-90D-17288

Four position CAM style indexer (90 degree) with pedestal welded frame and 4-sided part fixture mounting plates. Driven by electric motor with brake. Top plate designed for quick mounting of part load plates/fixtures. Utilities like I/O network, air, and power fed to the top plate allowing various controls to be mounted on indexer and continuous rotation. Mounting feet are included for easy repositioning.

• Allowable part/fixture load force: 5000 N (1125 lbs)
• Positioning accuracy: +/-30 arcsec
• Top plates structure dimensions: 30" x 30" x 20" (762 x 762 x 508 mm)
• Height with pedestal: 40" (1016 mm)
• Sensors (PNP): In position, sides A,B,C,D
• Utilities fed to top plate: I/O network like Ethernet I/P, Profibus, Devicenet, compressed air, power (24VDC)

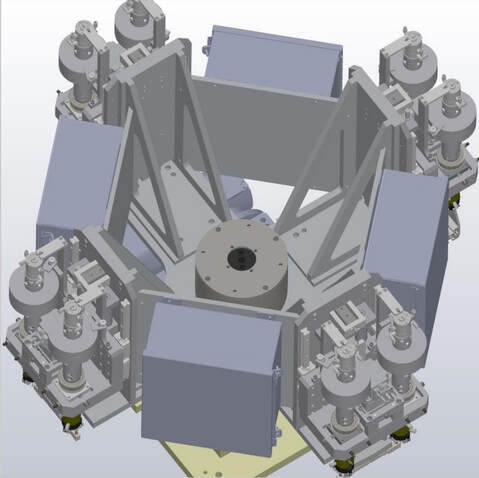

INDEXER WITH SPINDLES
​Model: INDX-90D-20121112-01

Four position CAM style indexer (90 degree) with pedestal welded frame and 4 dual part spindle assemblies (SPND-20140226-100). Driven by electric motor with brake. Optionally the indexer may be provided just with top plate structure (no spindles). Utilities like I/O network, air, and power fed to the top plate allowing various controls to be mounted on indexer and continuous rotation. Mounting feet are included for easy repositioning. This indexer can be used in dry and wet
applications.

• Allowable part/fixture load force: 5000 N (1125 lbs)
• Positioning accuracy: +/-30 arcsec
• Top plates structure dimensions: 30" x 30" x 20" (762 x 762 x 508 mm)
• Height with pedestal: 40" (1016 mm)
• Sensors (PNP): In position, sides A,B,C,D
• Utilities fed to top plate: I/O network like Ethernet I/P, Profibus, Devicenet, compressed air, power (120/240 VAC)

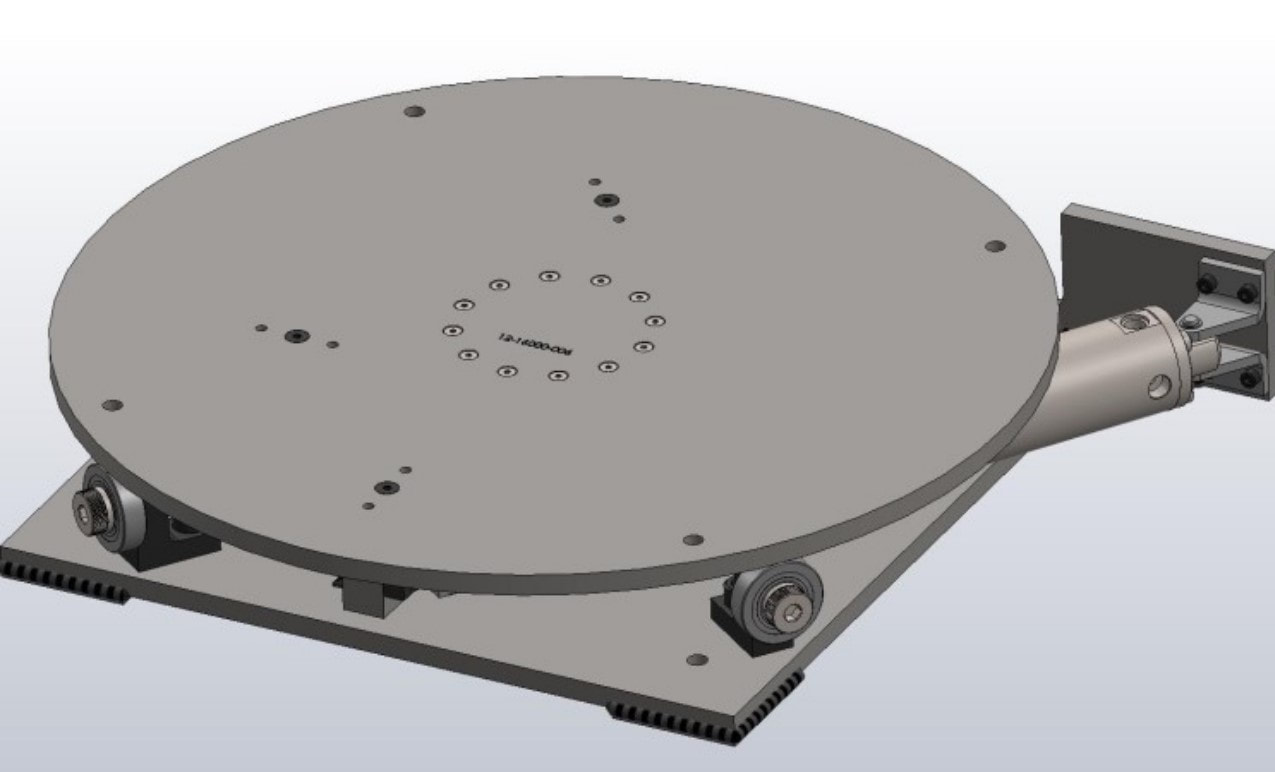

RECIPROCATING INDEXER
Model: INDX-90D-12-16000

Reciprocating indexer for rotating large parts or stations between 0 and 90 degrees. Actuated by pneumatic cylinder against adjustable stops.

• Payload: 1000 lbs (455 kg) evenly distributed from center
• Index: 0-90 degrees
• Index and holding force: 240 lbs (1067 N)
• Table height: 3.75 inches (95 mm)
• Table top diameter: 22 inches (560 mm)
• Sensors (PNP): at 0 deg, at 90 deg
