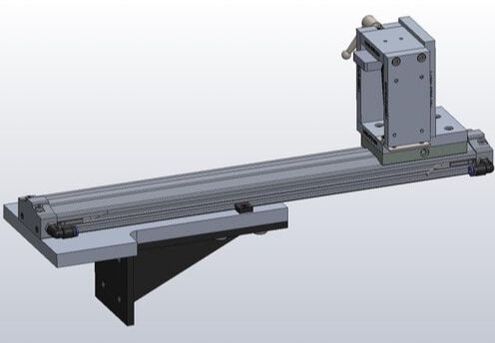

COMPOUND APPLICATOR FOR SOLID BARS
Model: BUFF-CMPDX1-16285-8702

Solid compound bar applicator with pneumatic pressure control extension and front guides/support for the compound bar.  The applicator extends to press compound bar against a buff under programmed force.  As the compound bar wears the applicator advances constantly applying the set force.  Application cycle and the force are controlled by the machine controller.

• Standard compound bars range: 2.62"x1.75" (66.5 x 44.5 mm) to 3" x 2" (76 x 50 mm) and up to 12" (305 mm) long
• Application force: up to 28 lbs (12.7 kg)
• Supports for bar tip during application to prevent breakage
• Maximum compound bar wear sensor (maximum extension)
• Retracted sensor

TRIPLE COMPOUND APPLICATOR
​Model: BUFF-CMPDX3-16285-8713

Station with 3 solid bar compound applicators (BUFF-CMPDX1-16285-8702) with independent pneumatic pressure control extension and front guides/support for the compound bar.  Each compound applicator is controlled separately so only one bar extends for application at a time.  Each applicator extends to press compound bar against a buff under programmed force.  As the compound bar wears the applicator advances constantly applying the set force.  Application cycle and the force are controlled by the machine controller.

• The station allows application of up to 3 different compounds
• ​Standard compound bars range: 2.62"x1.75" (66.5 x 44.5 mm) to 3" x 2" (76 x 50 mm) and up to 12" (305 mm) long
• Application force: up to 28 lbs (12.7 kg)
• Supports for bar tip during application to prevent breakage
• Maximum compound bar wear sensor (maximum extension)
• Retracted sensor
• Optional fully plumbed and wired ready for use
• Available controls are: discrete I/O, Ethernet I/P, Profibus, Devicenet

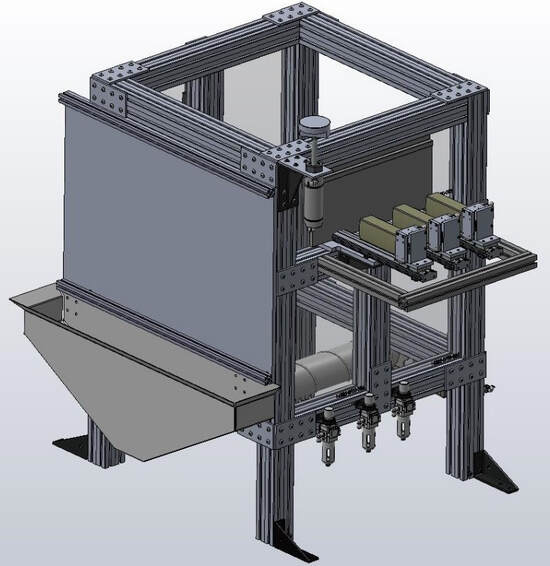

COMPOUND APPLICATION AND BUFF TREATMENT STATION
Model: BUFF-STATION-16285-8700

Booth-style station for treating buff wheels and applying compound accessible through the top opening.  Included are triple bar compound application station (BUFF-CMPDX3-16285-8713), buff rake, buff smoothing plate, dust collection scoop.

• Overall station size: 31.5" x 31.5" x 47" (800 x 800 x 1194 mm)
• Top opening: 25.5" x 25.5" (648 x 648 mm)
• One triple compound bar applicator #BUFF-CMPDX3-16285-8713
• One 9" (229 mm) long buff rake
• One 35.5" x 24" (902 x 610 mm) plate with sandpaper for buff surface cleanup
• Dust scoop
• Optional fully plumbed and wired ready for use
• Available controls are: discrete I/O, Ethernet I/P, Profibus, Devicenet

COMPOUND SPRAY GUN ARBOR
Model: BUFF-SPRAY-16285-4102

Compound spray gun attachment on 1" arbor for spindle #SPD-16285-4111.  The attachment can be picked up bu the spindle and with umbilical cords for air, signals, and compound allows manipulation by the robot with that spindle.  Optional takeup roller for the umbilical cabling makes this a compact system for articulated spray of liquid compound.

• 1" diameter arbor for handling by auto collet spindle SPD-16285-4111
• High pressure or low pressure spray gun
• Umbilical cord for air, electric signals, and compound delivery extends 90" (2280 mm) allowing that much motion
• Optional compound pressure tank
• Optional umbilical cord take-up roller
